Jane and John's RV pagesWe add a roof top AC unit
Page 2
On to page 3 | page 4 | back to page 1
Let's jump to the end - what the completed project looks like!

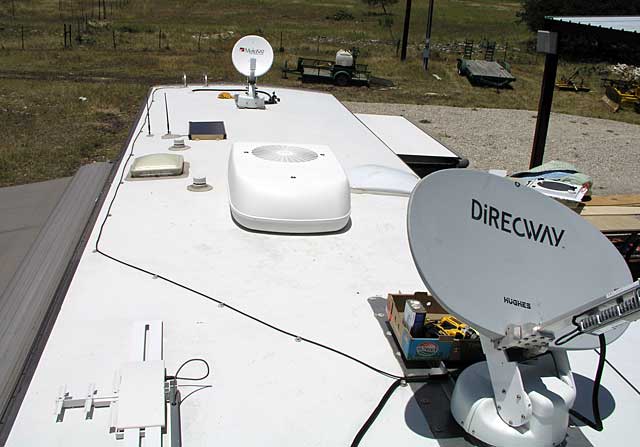

Looks like it came out of the factory like this!
Plenty of room for the Polar Mach 13,500 BTU model
Let's take a look at the project step-by-step in pictures
I always like to get wiring out of the way first...
The simplest way to get wire from the breaker box to the OnePlace area is to run it in the corner as pictured above, under the bathroom vanity/sink under the shower pan, then up the OnePlace center. This little bit of exposed wire is really not very obtrusive. The little bit of blue on the right side is plastic flex conduit - most of the wiring run is in this conduit to minimize any possibility of chafe issues down the road

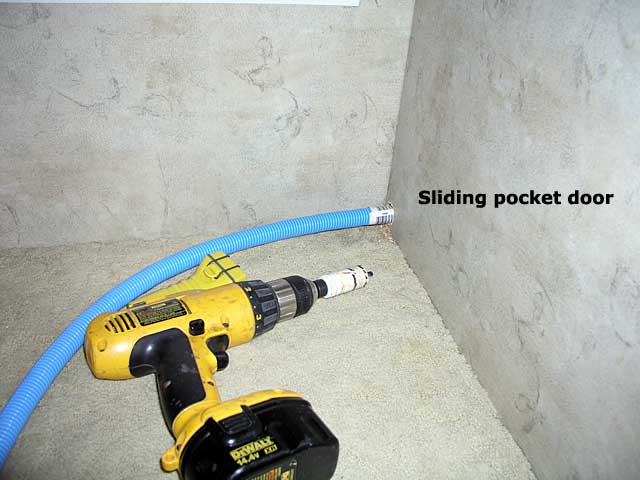

This is the first place I started - a hole large enough to feed the flex conduit to under the bathroom vanity

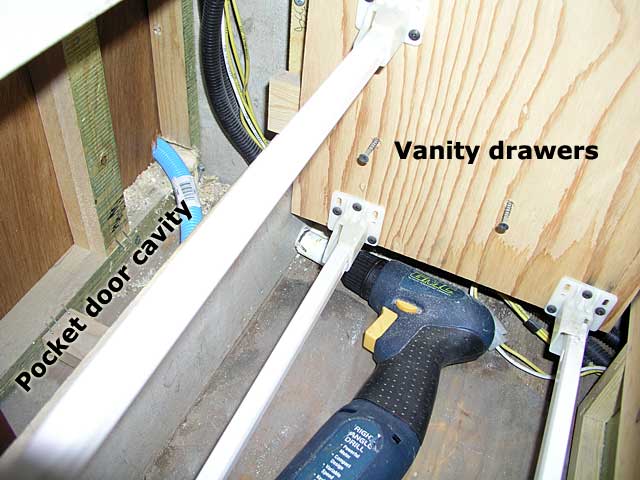

Needed one more hole for the conduit to continue its route forward

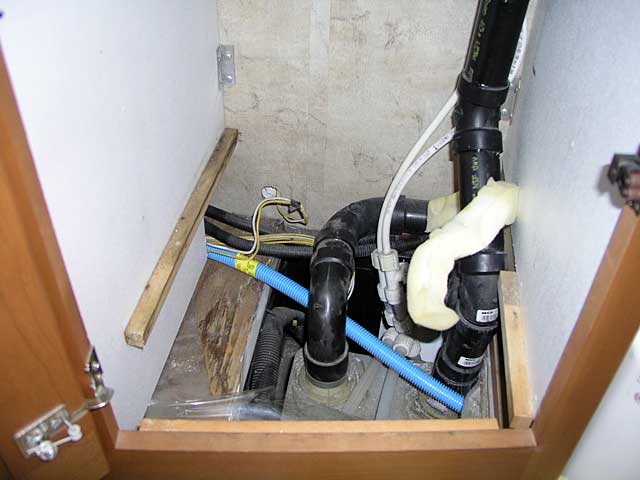

You will have to disassemble the area under the sink to gain access like this

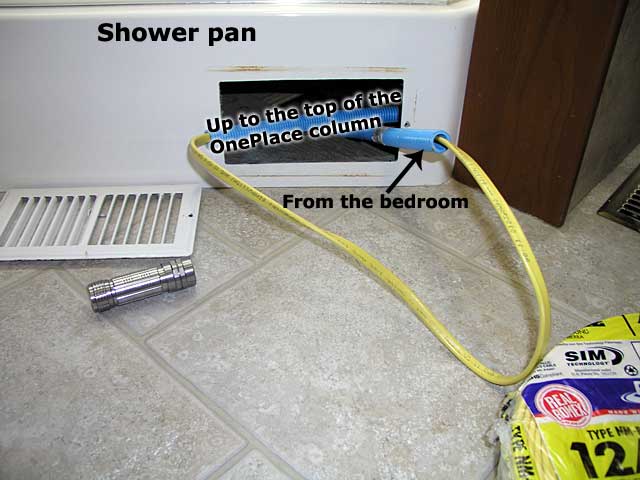

And under the shower pan. I need to find a stainless or aluminum grill replacement for the ferrous Winnie-supplied grill (notice the rust on the pan)

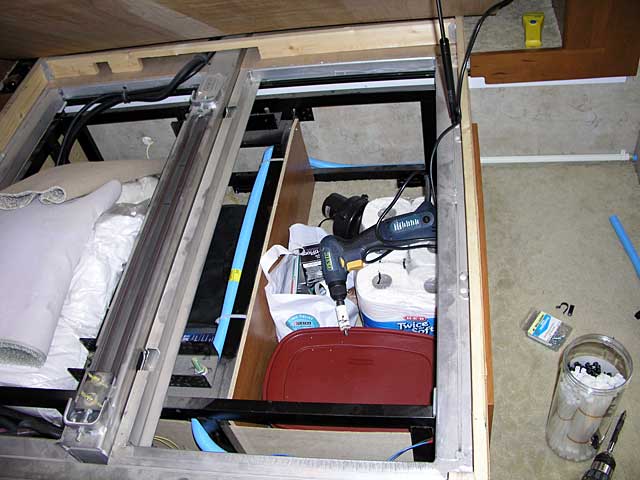

This is a good time to illustrate the conduit run under the bed

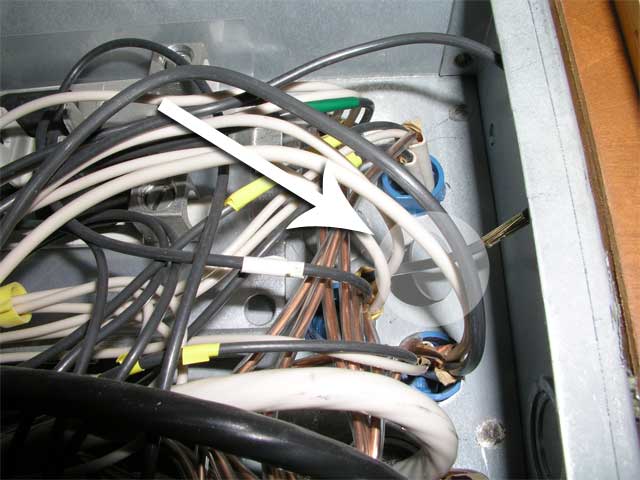

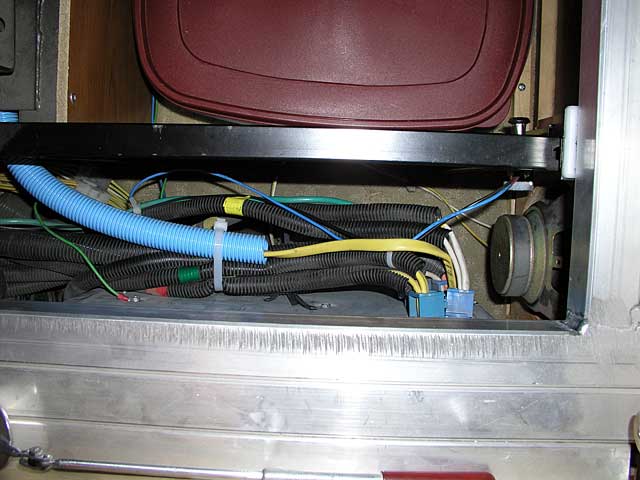

The new wire entering the rear of the box
There were a couple of knockouts left - this one (1/2") was the easiest to access

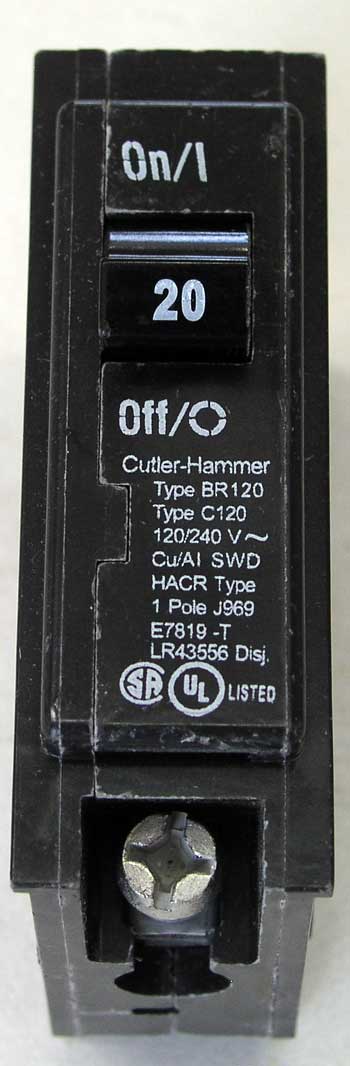

The new breaker installed
It is highly unlikely that Lowe's or Home Depot carry Cutler-Hammer products. You might need to call electrical parts distributors in your area to find a dealer
