The glass monster in the salon finally gets replaced with an LCD TV

Due to the number of pictures, I'm splitting this up into two parts. Part 1 is removal of the old TV, Part 2 is installing the new LCD

    Part 1 | Part 2

Let's get busy with cabinet work!

It was necessary to line the interior of the cabinet space with plywood on the top and bottom to provide a strong surface for mounting an articulated TV mount, and on the sides for good looks. This require quite a bit of thought and planning and whatever you decide to do, I recommend you mock up idea first before plunging ahead with good cabinet-grade plywood.

I used 1/2" cabinet-grade birch plywood for the top and bottom on the cabinet interior, and 1/4" birch ply for the sides. Birch takes stain really well and it wasn't too difficult to come close enough to matching up our Horizon's sun-darkened cherry. I made some molding to finish out the cabinet interior corners. One tip - I highly recommend you do all of sanding and staining, etc. on the wood before installation! Makes it so much easier.

One other tip - use cardboard to make a template of whatever it is you decide to do.

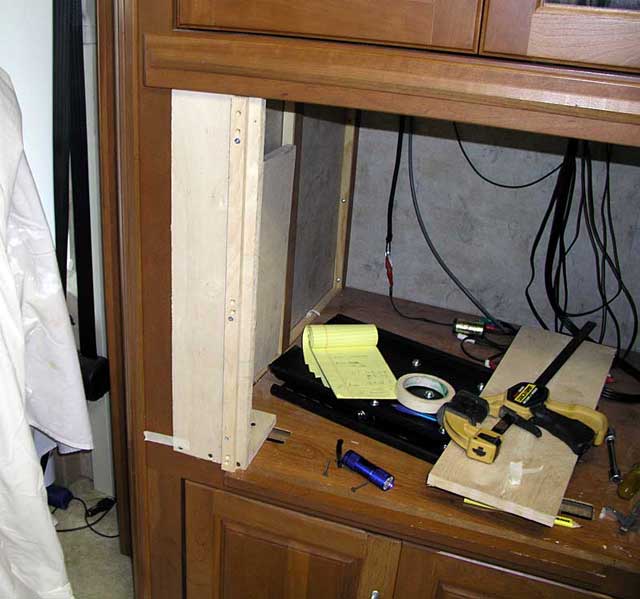

Preparing to widen the cabinet opening

The cabinet opening needed to be widened by about 1/2" - I made a jig to make cutting accurate with my 18V DeWalt circular trim saw

Cutting the other side of the cabinet opening

And ready to cut the other side

Mount mockup to find dimensions

Next I used plywood scraps to mock-up and test my mount dimensions and to make certain everything would fit properly. Then we can move on!

Marking the plywood for cutting

You can remove the Winnebago paneling to use for marking the top/bottom plywood

Plywood is cut

Plywood is cut and you can notice my angle aluminum mounts for support of the vertical TV mount supports (this will make more sense in the next picture)

Trial fit of the parts

Ah - looking good so far. I'll remove the new plywood and the aluminum angle for staining and painting

Mount is test fitted to the final parts

Yup - looks like it's going to work!

Now we're fitting the plywood sides

Let's get the sides fitted

Nailer strip or cleat added

Had to add a cleat here to nail the plywood to

Cabinet work is completed!

Ah - the finished job less the TV. I moved the IR receiver from the bedroom to here so I could easily operate the Sony home theatre and the DVR

Cabinet trim added

As a finishing touch, I made some trim for the opening bottom. The poplar trim looks a little 'off' in color here, but it really looks good in person!

The TV is installed

The TV is now mounted

A great viewing angle now!

We're watching an old B/W movie. We can now easily see the TV from anywhere in the salon

A few details about the speaker setup:

Details about the speakers

The Sony woofer fit nicely here. It is captured by brackets I installed. The center speaker was a very good one I had lying around

Running speaker wires

The best time to run speaker wires is now!

Left speaker installation

I used some old Bose cube speakers I had hanging around

One of the rear speakers

Here's the left rear surround speaker (wireless)

That's it - I have a bunch more pictures, but you should have a good idea now of what I decided to do. Shoot me an email if you have any questions
